Frontegg ReBac Engine Setup

The Frontegg Relationship-Based Access Control (ReBac) engine provides fine-grained authorization for your application. This guide covers setting up the ReBac engine for both local development and production environments.

New Architecture

This setup uses the latest ReBac architecture powered by SpiceDB. The sync job continuously synchronizes your authorization schema and relationships from Frontegg to your local SpiceDB instance. For migration from the legacy Entitlements Agent, see the Migration Guide.

Architecture

ComponentRole
Frontegg CloudStores entity types, relations, and assignments
Sync JobPulls data from Frontegg → writes to SpiceDB (every 60s)
SpiceDBEvaluates permission checks locally
Your AppUses SDK to query SpiceDB for authorization decisions

Data Flow:
Frontegg Cloud → Sync Job → SpiceDB ← Your App (SDK)

Prerequisites

All Environments

  • Frontegg account with ReBac feature enabled
  • Frontegg credentials (Client ID and API Key)
  • Node.js v18+ (for SDK integration)

Local Development Only

Why Docker for Local?

Docker Compose runs the full ReBac stack locally (CockroachDB, SpiceDB, Sync Job) with a single command. This eliminates the need to install and configure each component separately.

Production Only

  • Container runtime (Docker, Kubernetes, or your preferred orchestration platform)
  • Existing SpiceDB instance (self-hosted or managed)
  • Optional: Helm v3+ (Install Helm)

Supported Versions

ComponentVersionNotes
SpiceDBv1.42.1+Authorization engine
Zed CLIv0.30.2+SpiceDB management CLI
@frontegg/e10s-clientv0.1.1+Node.js SDK
Node.jsv18+Runtime requirement

Local Development Setup

Step 1: Get Your Credentials

You'll need the following environment variables:

VariableDescriptionWhere to Find
FRONTEGG_CLIENT_IDYour environment's Client IDPortal → Keys & domains
FRONTEGG_CLIENT_SECRETYour environment's API KeyPortal → Keys & domains

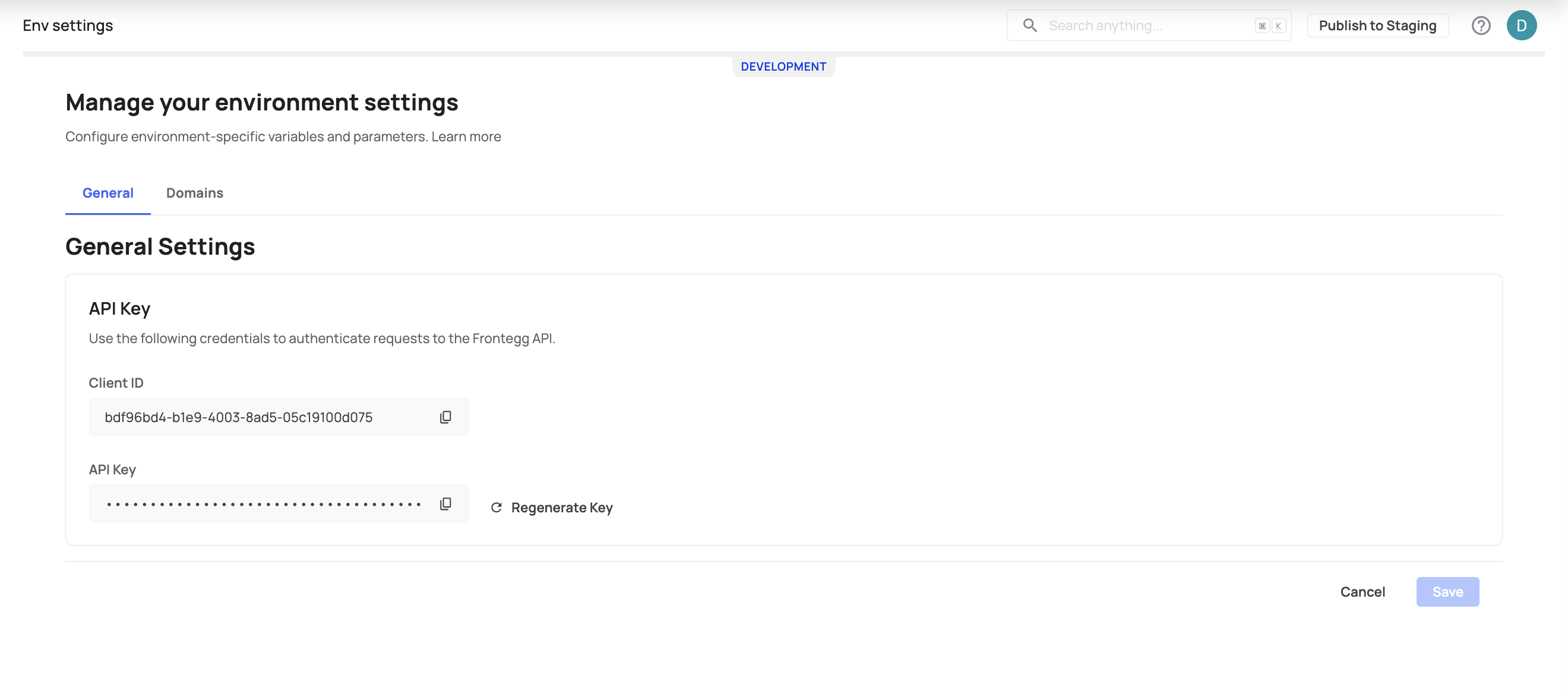

Env settings


Step 2: Create Environment File

Create a .env file in your project root:

# Required Frontegg Configuration
FRONTEGG_CLIENT_ID=your-client-id
FRONTEGG_CLIENT_SECRET=your-api-key
FRONTEGG_URL=https://api.frontegg.com

# SpiceDB Configuration (defaults work for local development)
SPICEDB_GRPC_PRESHARED_KEY=spicedb

Step 3: Create Docker Compose File

Create a docker-compose.yml file with the ReBac engine stack:

version: "3.8"

services:
  spicedb-cockroachdb:
    image: cockroachdb/cockroach:latest
    ports:
      - "26257:26257"
    volumes:
      - spicedb-cockroachdb-data:/cockroach/cockroach-data
    command: ["start-single-node", "--insecure"]
    healthcheck:
      test: ["CMD", "/cockroach/cockroach", "sql", "--insecure", "--execute", "SELECT 1"]
      interval: 10s
      timeout: 5s
      retries: 3
      start_period: 10s
    environment:
      - PGUSER=root
      - PGPASSWORD=password
      - PGDATABASE=spicedb

  spicedb-create-db:
    image: cockroachdb/cockroach:latest
    command: ["sql", "--insecure", "--host=spicedb-cockroachdb:26257", "--execute=CREATE DATABASE IF NOT EXISTS spicedb;"]
    depends_on:
      spicedb-cockroachdb:
        condition: service_healthy
    restart: "no"

  spicedb-migrate:
    image: authzed/spicedb:v1.42.1
    command: ["datastore", "migrate", "head", "--datastore-engine=cockroachdb", "--datastore-conn-uri=postgres://root:password@spicedb-cockroachdb:26257/spicedb?sslmode=disable"]
    depends_on:
      spicedb-create-db:
        condition: service_completed_successfully
    restart: "no"

  spicedb:
    image: authzed/spicedb:v1.42.1
    ports:
      - "50051:50051"
    volumes:
      - spicedb-data:/data
    command: ["serve", "--datastore-engine=cockroachdb", "--datastore-conn-uri=postgres://root:password@spicedb-cockroachdb:26257/spicedb?sslmode=disable", "--log-level=info"]
    environment:
      - SPICEDB_GRPC_PRESHARED_KEY=${SPICEDB_GRPC_PRESHARED_KEY:-spicedb}
    healthcheck:
      test: ["CMD", "pgrep", "-f", "spicedb"]
      interval: 30s
      timeout: 10s
      retries: 3
      start_period: 10s
    depends_on:
      spicedb-migrate:
        condition: service_completed_successfully
      spicedb-cockroachdb:
        condition: service_healthy

  spicedb-sync:
    image: frontegg/entitlements-engine:latest
    environment:
      - FRONTEGG_CLIENT_ID=${FRONTEGG_CLIENT_ID}
      - FRONTEGG_CLIENT_SECRET=${FRONTEGG_CLIENT_SECRET}
      - FRONTEGG_URL=${FRONTEGG_URL:-https://api.frontegg.com}
      - SPICEDB_ADDRESS=spicedb:50051
      - SPICEDB_GRPC_PRESHARED_KEY=${SPICEDB_GRPC_PRESHARED_KEY:-spicedb}
    volumes:
      - spicedb-sync-logs:/var/log/spicedb-sync
    restart: unless-stopped
    healthcheck:
      test: ["CMD", "pgrep", "-f", "sync-loop.sh"]
      interval: 30s
      timeout: 10s
      retries: 3
      start_period: 10s
    depends_on:
      - spicedb
      - spicedb-cockroachdb

volumes:
  spicedb-data:
  spicedb-sync-logs:
  spicedb-cockroachdb-data:

Step 4: Start the ReBac Engine

Run the following command to start all services:

docker compose up -d

The sync job will automatically start fetching your authorization schema and relationships from Frontegg every 60 seconds.

Step 5: Verify Setup

Check that all services are running:

docker compose ps

You should see all services in a healthy state. The SpiceDB gRPC endpoint is now available at localhost:50051.

Production Setup

The sync job runs as a container that connects to your SpiceDB instance. You can deploy it using any container orchestration platform. Below is an example using Helm charts for Kubernetes.

Step 1: Add Frontegg Helm Repository

helm repo add frontegg https://charts.frontegg.com
helm repo update

Step 2: Create Values File

Create a values.yaml file with your configuration:

name: entitlements-engine
team: your-team

envID: production

image:
  repository: "frontegg/entitlements-engine"
  tag: "latest-withloop"

imagePullSecrets:
  - name: regcred

worker:
  enabled: true
  containerName: entitlements-engine
  replicaCount: 2
  autoscaling:
    enabled: true
    minReplicas: 2
    maxReplicas: 5
    targetCPUUtilizationPercentage: 70
  resources:
    requests:
      cpu: 200m
      memory: 512Mi
    limits:
      cpu: 1000m
      memory: 1024Mi

configmap:
  data:
    spicedbAddress: 'your-spicedb-address:50051'
    spicedbPresharedKey: "your-preshared-key"

externalSecret:
  enabled: true
  data:
    FRONTEGG_CLIENT_ID: "your-client-id"
    FRONTEGG_CLIENT_SECRET: "your-api-key"

Step 3: Deploy with Helm

helm install entitlements-engine frontegg/entitlements-engine \
  -f values.yaml \
  --namespace entitlements \
  --create-namespace

For production environments, we recommend the following rate limits:

OperationRecommended LimitNotes
Check Permissions10,000 req/minPer SpiceDB instance
Lookup Resources1,000 req/minPagination recommended
Lookup Subjects1,000 req/minPagination recommended

SDK Integration

Once the ReBac engine is running, integrate the SDK into your application to perform permission checks.

For complete SDK documentation including installation, initialization, and query examples, see the Node.js SDK Guide.

Creating Relations via Frontegg API

Relations between entities are managed through the Frontegg API. The sync job automatically synchronizes these to your local SpiceDB instance.

For complete API documentation including assign, unassign, and list operations, see the Relations API Reference.

Sync Delay

Relations created via the API are synchronized to your SpiceDB instance within 60 seconds (default sync interval).

Health Checks

SpiceDB Health

grpcurl -plaintext localhost:50051 grpc.health.v1.Health/Check

Sync Job Health

The sync job container exposes a health check that verifies the sync loop is running:

docker exec spicedb-sync pgrep -f sync-loop.sh

Next Steps
